1000M Single Fiber Media Converter Cat5 UTP Cable With 1310/1550nm

Brand Name : AEO

Certification : CE, FCC

Place of Origin : China

MOQ : 1 pair

Price : negotiation

Payment Terms : T/T

Supply Ability : 10000 pairs/month

Delivery Time : 2-3 working days

Packaging Details : package and carton

Optical wavelength : 1310/1550nm

Voltage Range : DC5V

Ethernet Port : 0-100M

Power consumption : <3W

Connector Type : LC ,SC/ST/FC

MTBF : 50000 hours

Working Temp : -10℃~ 60℃

Humidity : 5~90% non-condensing

Contact Now

1000M Single Fiber Media Converter with 1310/1550nm

Technical Parameters

Interface
1*SFP optical port+1*RJ45 ports
Standard agreement
IEEE 802.3 Ethernet media access control protocol, IEEE 802.3i 10Base-T Ethernet IEEE 802.3u 100base-tx Fast Ethernet IEEE 802.3x flow control
operation mode
Full duplex / half duplex, with full duplex / half duplex auto negotiation function
Bandwidth
SFP ports :1.25G RJ45 port:10/100/1000M
LEDindicator light
No indicator light
cable type
Cat5 UTP (less than 100m)
performance
Main chip
Store and forward
ackplane bandwidth / Mac
Power Supply
External power supply
Limit range
Power
work environment
working temperature
Storage temperature
working humidity
Storage humidity
working life
>Over 100000 hours

Product Overview

1000M Single Fiber Media Converter series of mini (micro) Ethernet fiber optic transceivers, smaller than the business card, easy to install in a variety of waterproof box or integrated ball machine inside (fiber Ball) and explosion-proof cameras, the product can be stable in the 0 °C ~ +50 °C harsh climate environment, +9 ~ +36 V wide range of power supply design can adapt to many occasions. This series can be a single fiber transmission 1 channel Ethernet , support a video server or network camera access.

This Ethernet optical transceiver (fiber optic transceivers) with Ethernet interface triple lightning protection design, effective against lightning damage.

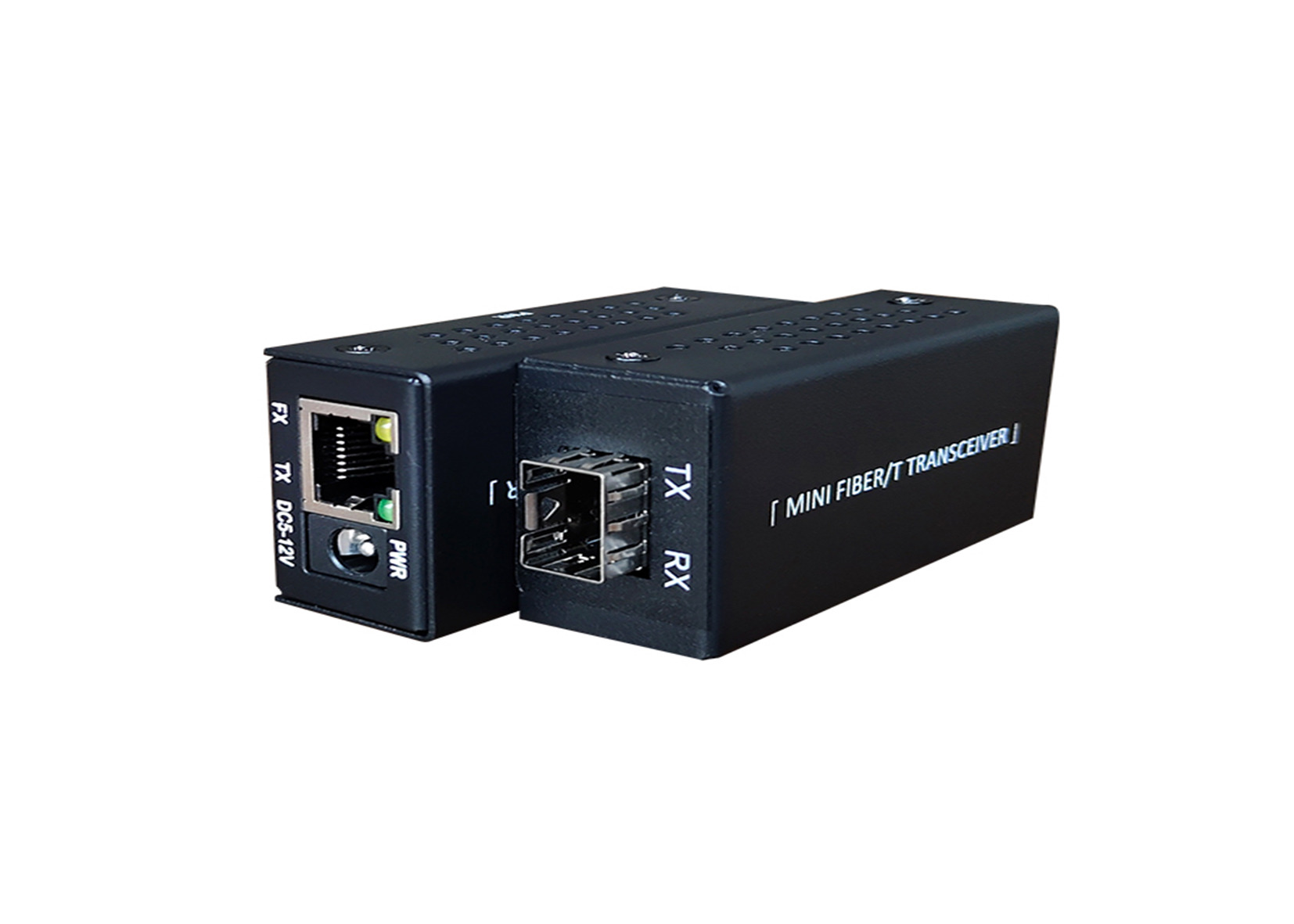

Product Picture

1000M Single Fiber Media Converter Cat5 UTP Cable With 1310/1550nm

Packaging & Shipping

● All of our package are international standard package

● We will deliver our products as soon as the order confirmed

1000M Single Fiber Media Converter Cat5 UTP Cable With 1310/1550nm
